EMS Transmitter Isolation Valve

We can supply you a Transmitter Isolation Valve (TIV) which has:

  1. Less dead leg
  2. Less sealing (leakage)
  3. Less maintenance
  4. Less downtime

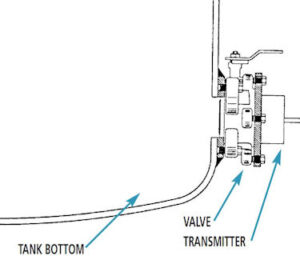

We have a TIV ball valve type, which has less face to face length (figure 2) then a normal ANSI style valve. With the “flush and clean” feature. Flush and clean is applied around the ball and between the transmitter and the ball (figure 1). The TIV can easily be mounted on your transmitter and tank connection.

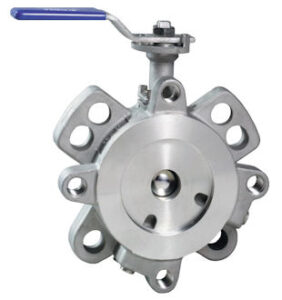

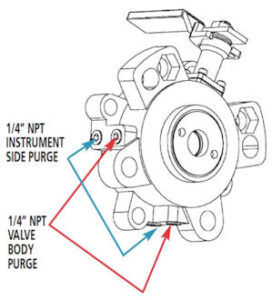

Figure 1: Flush and clean ports Figure 2: Small face-to-face length Figure 3: Isometric view

With our experience and engineering capabilities we will always deliver a reliable solution that will perform to your expectations.
