EMS Double block and bleed valves

Double block and bleed valves are perfect in applications when you need a safe system. The pipeline can be depressurized and the operator will not get in contact with dangerous medium and high pressures.

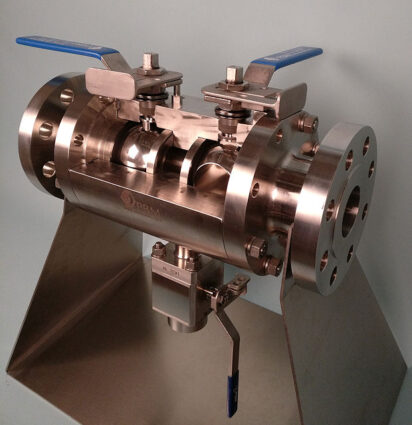

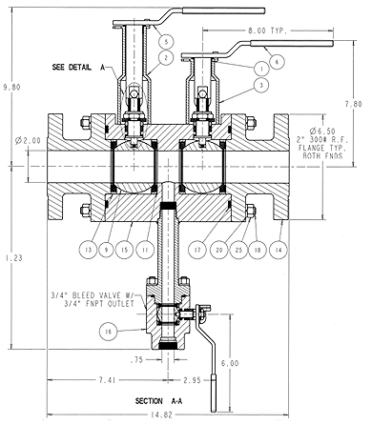

Figure 1: Sample valve Figure 2: Detail drawing

EMS double block and bleed valve provide true double positive isolation:

  1. Two independent sealing members (two ball and seat combinations)
  2. Two separate actuating mechanisms (two stems and handles or actuators)

This configuration provides the best technology for the most severe isolation services. We can make the valve complete custom to your requirements (including extended spindles for insulation, special end connection and more).

With our experience and engineering capabilities we will always deliver a reliable solution that will perform to your expectations.
