EMS Direct Steam Converting Valve – Steam Atomization

We want to introduce the DSCV-SA (Direct Steam Converting Valve – Steam Atomization). The DSCV-SA is a world leading steam conditioning valve specifically designed for the most arduous applications such as steam turbine bypass systems, either open or closed cycle, continuous steam letdown stations and CHP plants. These valves form a critical part of the safe and efficient operation of all power stations and steam distribution systems.

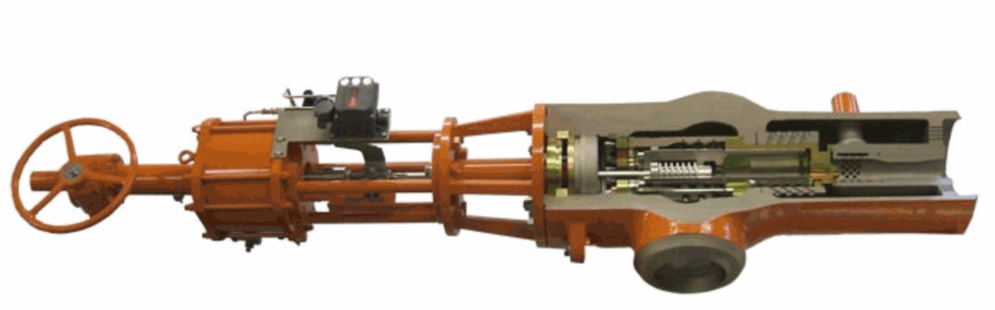

The DSCV-SA is an angle style construction with the steam inlet through the branch connection and the steam outlet through the in-line connection. The connections can be either flanged or butt welded depending upon the customer preference. The valve can be provided up to ANSI 4500# rating.

The valve can be fitted with single stage HUSH, multi stage HUSH or Copes-Vulcan RAVEN trim technology depending upon the pressure drop and to meet the requirements of specific noise levels. The valve is provided with high pressure balancing, single seat trim construction utilising a tandem trim pilot operated concept ensuring tight and repeatable class V shutoff per ANSI/FCI 70-2

With our experience and engineering capabilities we will always deliver a reliable solution that will perform to your expectations.
